EBM 2024: Lecture 3

Interpreting Clinical Studies: Models, Trials, and When Things Don’t Go as Planned

Austin Meyer, MD, PhD, MS, MPH, MS

2025-05-16

Roadmap - Exactly 50 Minutes…

Fundamentals & Refreshers

• Brief Review: Pre-test to Post-test (2 min)
• Study Types & Evidence Pyramid (3 min)
• Key Concepts: Trials & Modeling (5 min)
  • \(H_0\), P-values, CIs
  • Basic Regression
  • Bias & Confounding

Case Studies: Diving into Evidence

1. Diagnostic Modeling: Pediatric Triage (12 min)
2. “Negative” Trial: Power & Interventions (12 min)
3. “Positive” Trial: Treating AOM (11 min)

• Q&A (5 min)

Introduction

Beyond Single Tests: Evaluating Broader Evidence

Last Lecture Recap:

• Diagnostic tests shift probability
• Helped make decisions for individual patients

This Lecture:

• How studies generate evidence
• Exploring different study types
• Focus on:
  • Building clinical models
  • Interpreting “negative” trials
  • Understanding “positive” trials

Quick Refresher: The Probability Journey

• Pre-test Probability: Initial clinical suspicion
• Diagnostic Test: New information (Sensitivity, Specificity, LRs)
• Post-test Probability: Updated clinical suspicion
• Today: The studies behind these numbers

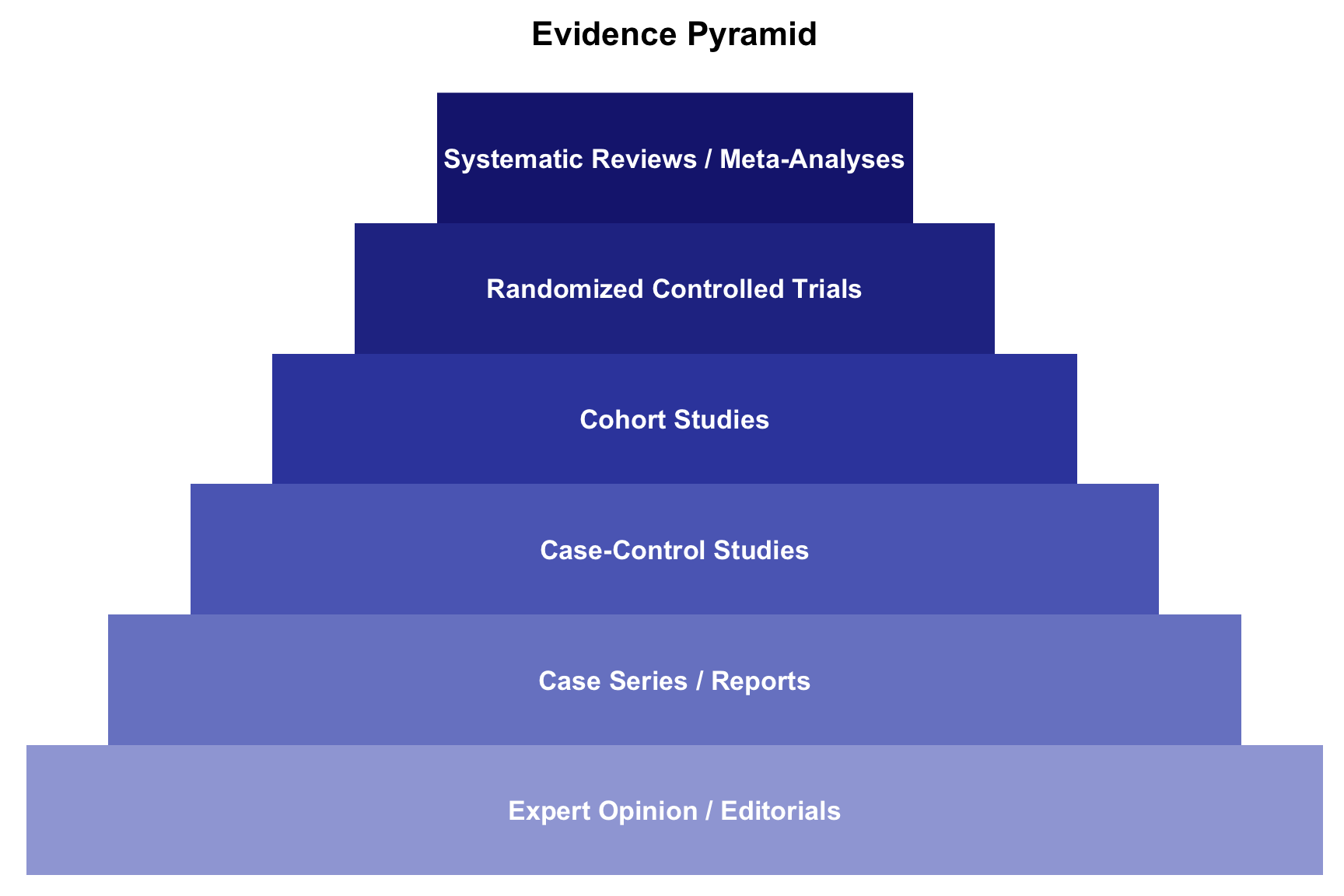

Study Types & Why They Matter

• Observational:
  • Cohort, Case-Control, Cross-Sectional
• Experimental:
  • Randomized Controlled Trials (RCTs) - Gold Standard for Therapy
• Syntheses:
  • Systematic Reviews & Meta-Analyses

• Goal: Understand strength of evidence from different research designs

Core Concepts (1/3)

• Null Hypothesis (\(H_0\)): Assumption of NO difference or NO effect
• Research aims to reject or fail to reject \(H_0\)
• P-value: Probability of observing study results (or more extreme) IF \(H_0\) is true
• \(\alpha\) (chosen before the study) sets the Type I-error rate

Core Concepts (2/3)

• Confidence Interval (CI): Range likely containing the true population parameter
• 95% CI: If study repeated many times, 95% of CIs would contain true value
• If 95% CI for a difference excludes 0 (or 1 for ratios), then p < 0.05

Core Concepts (3/3)

• Regression: Statistical method modeling relationships between predictors and continuous outcomes
• Logistic Regression: For binary outcomes (yes/no); actually estimates continuous odds of outcome
• Bias: Systematic error in study design or execution
• Confounding: Third variable distorts exposure-outcome relationship
• RCTs help minimize these issues through randomization

Case Study 1: ED Triage in LMCs

Challenge: Spotting Sick Kids Fast

• Critical challenge in busy/low-resource settings
• How to systematically use available information?
• Study: Mawji A, Li E, Dunsmuir D, et al. (2022). Smart triage: Development of a rapid pediatric triage algorithm for use in low-and-middle income countries. Frontiers in Pediatrics, 10, 976870.

Study Design: Smart Triage Model

Question: Can We Build a Rapid Triage Tool for Acutely Ill Children in Low-Resource Settings?

Methodology

• Population: Children under 19 years with acute illness at ED in Jinja, Uganda (90% under 5 years)
• Study Type: Prospective cohort study for model development
• Sample: 1,612 participants (80:20 train/test split)
• Primary Outcome: Hospital admission for >24 hours

Model Development

• Candidate Predictors: 63 variables based on PS2 working group guidelines
• Variable Selection: Bootstrapped stepwise regression
• Final Model: 9-variable logistic regression
• Risk Stratification:
  • Low risk threshold: 8% (91% sensitivity)
  • High risk threshold: 40% (92% specificity)
  • Categories: Non-urgent, Priority, Emergency

Building the Model: Logistic Regression

• Goal: Predict hospital admission (proxy for severe illness)
• Method: Analysis of data from acutely ill children in Jinja, Uganda
• The Model Equation: \[ \begin{align} \text{logit}(p) &= -32.888 \\ &+ (0.252 \times \sqrt{\text{age in months}}) \\ &+ (0.016 \times \text{heart rate}) \\ &+ (0.819 \times \text{temperature }^\circ C) \\ &+ (-0.022 \times \text{MUAC in mm}) \\ &+ (0.048 \times \text{transformed O}_2 \text{ saturation}) \\ &+ (1.793 \times \text{parent concern}) \\ &+ (1.012 \times \text{difficulty breathing}) \\ &+ (1.814 \times \text{oedema}) \\ &+ (1.506 \times \text{pallor}) \end{align} \]

Where p = probability of admission.

Transformed O\(_2\) Saturation: \(70.103 \times \log_{10}(101.687 - \text{SpO2}) - 55.833\).

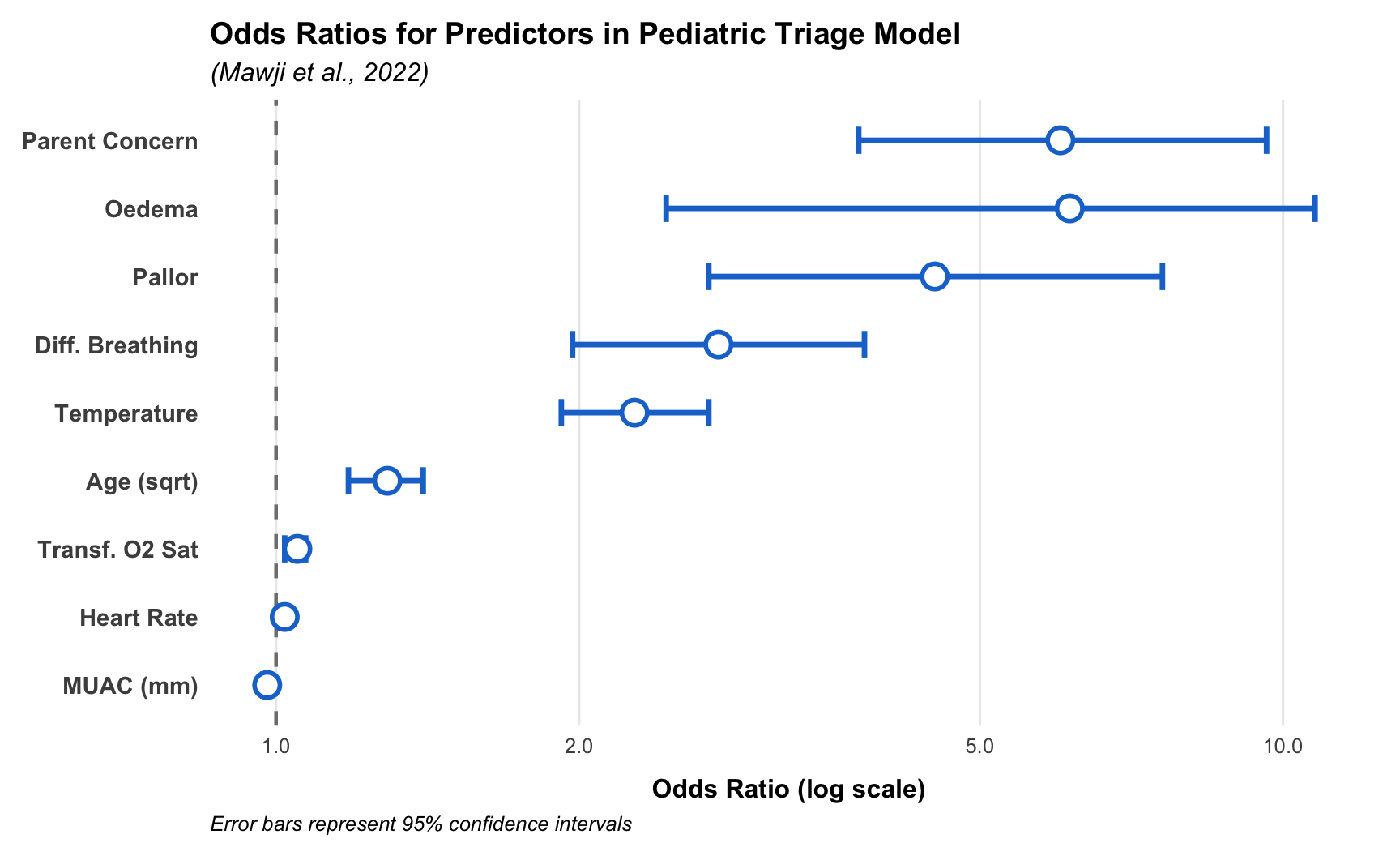

Understanding Logistic Regression Output

• logit(p): Log-odds of admission: \(\ln\left(\frac{p}{1-p}\right)\)
• Coefficients: For each 1-unit increase in predictor, log-odds changes by coefficient value
• Example: For 1 bpm increase in heart rate, log-odds increases by 0.016
• Exponentiating gives Odds Ratio (OR)
• \(e^{0.016} \approx 1.016\) → ~1.6% increase in odds per 1 bpm HR increase
• Intercept (-32.888): Log-odds when all predictors are zero/reference

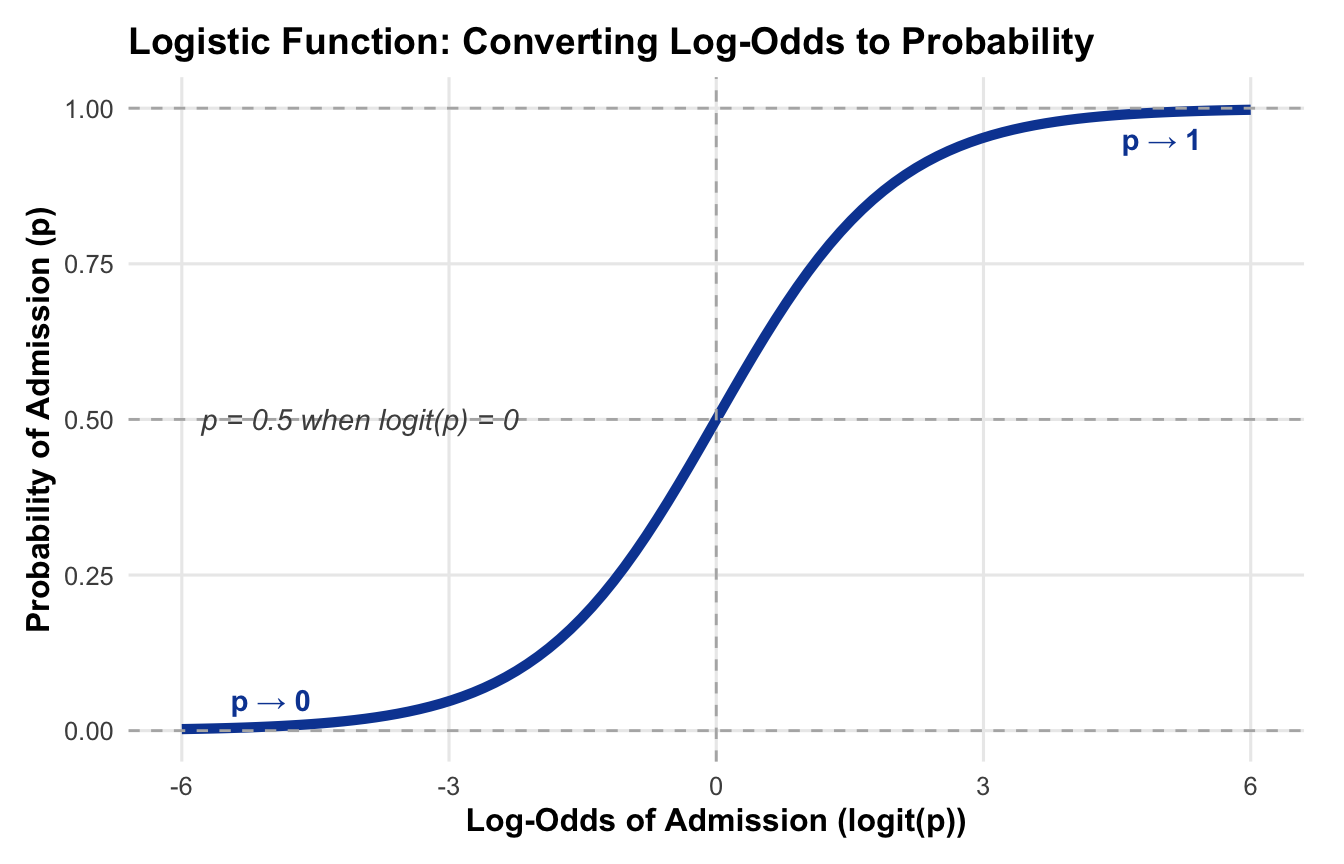

From Log-Odds to Probability

1. Calculate logit(p) using patient’s data
2. Convert to probability p: \[p = \frac{e^{\text{logit}(p)}}{1 + e^{\text{logit}(p)}} = \frac{1}{1 + e^{-\text{logit}(p)}}\]

Example: Simulated Patient

• Age: 12 months (\(\sqrt{12} \approx 3.464\))
• HR: 110 bpm
• Temp: 37 \(^\circ C\)
• MUAC: 130 mm
• O\(_2\) Sat: 98% (Transformed: \(70.103 \times \log_{10}(101.687 - 98) - 55.833 \approx 13.302\))
• Parent concern: Yes (1)
• Difficulty breathing: Yes (1)
• Oedema: No (0)
• Pallor: No (0)

• Calculated Result:
  • Logit(p) = -0.78
  • Probability of admission = 0.31 (31.43%)

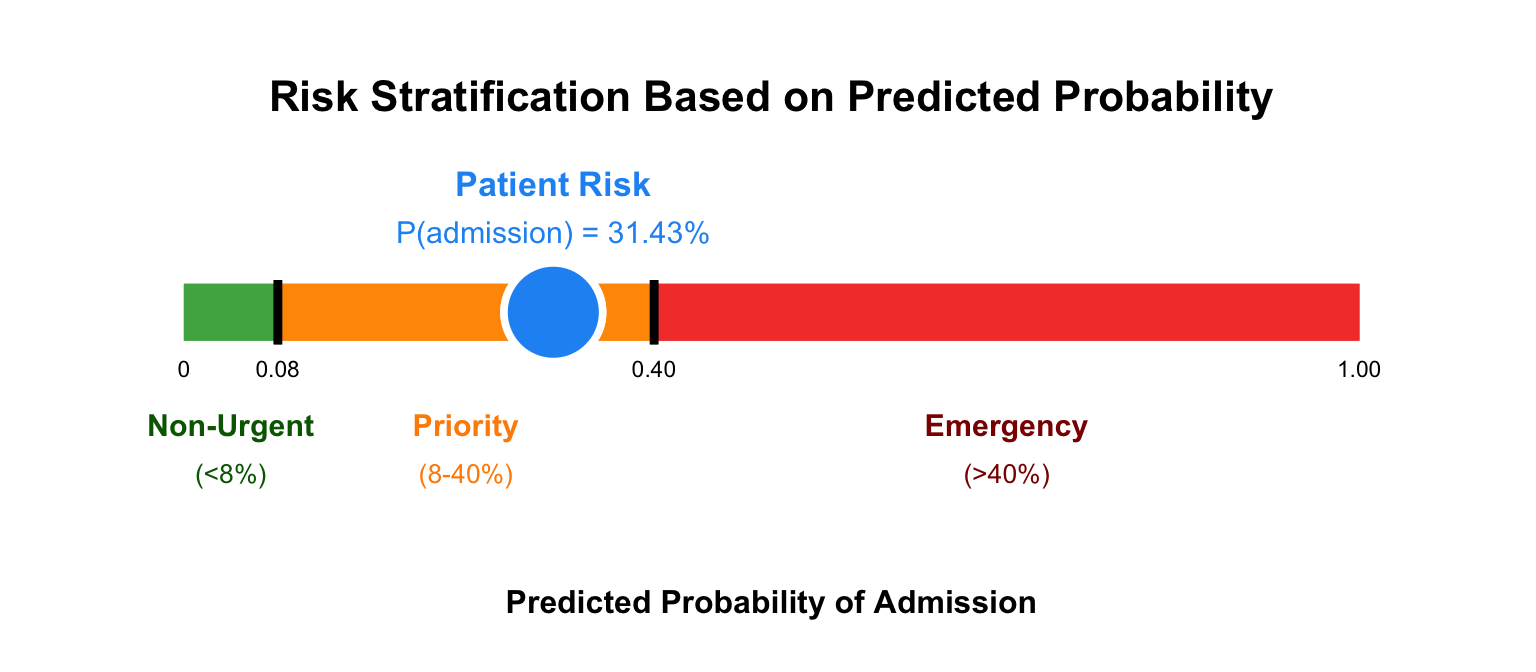

Model Performance & Risk Stratification

• AUC (Area Under ROC Curve): 0.86 (“good discrimination”)
• Risk Stratification (Mawji et al., 2022):
  • Low-risk threshold: < 8% probability (Sensitivity 91%)
  • High-risk threshold: > 40% probability (Specificity 92%)
  • Categories: Non-urgent, Priority, Emergency

Our patient: p = (31.43% → Priority (between 8% and 40%)

Teaching Points: Mawji et al. Triage Model

• Addresses real-world clinical need
• Logistic regression effectively combines factors for binary outcome prediction
• Transparent model (published equation) enables application/testing
• Performance metrics (AUC, Sensitivity, Specificity) are crucial
• Risk stratification translates model output to actionable decisions

Case Study 2: Negative Trial - Asthma

Question: Home Environmental Interventions for Asthma ED Visits?

• Poorly controlled asthma often leads to frequent ED visits
• Home triggers are known contributing factors
• Study: Butz AM, Bollinger ME, Ogborn J, et al. (2019). Children with poorly controlled asthma: Randomized controlled trial of a home-based environmental control intervention. Pediatric Pulmonology, 54(3), 245–256.

Study Design: An RCT (Butz et al., 2019)

Methodology

• Population: Children (3-12 yrs) with persistent asthma, ≥2 ED visits or >1 hospitalization in past year
• Randomized: Yes, 222 children
• Primary Outcome: Proportion with >1 ED repeat asthma visit in 12 months

Hypothesis & Power

• \(H_0\): Intervention does NOT reduce proportion with >1 ED visit
• \(H_A\): Intervention DOES reduce this proportion
• Power Calculation (a priori):
  • Expected ~92% in control will have >1 ED visit
  • Aimed to detect reduction to 75% (17% absolute reduction)
  • For 90% power, α=0.05, needed 110 per group
  • Enrollment achieved: INT n=107, CON n=115

From Theory to Practice: Sample Size Calculation

Sample Size Formula

\(n \text{ per group} = \frac{(Z_{\alpha/2} + Z_{\beta})^2 \times [p_1(1-p_1) + p_2(1-p_2)]}{(p_1 - p_2)^2}\)

Where:

• \(Z_{\alpha/2}\) = 1.96 for α = 0.05 (two-sided)
• \(Z_{\beta}\) = 1.28 for 90% power
• \(p_1\) = fraction >1 ED visit in cont group (0.92)
• \(p_2\) = fraction >1 ED visit in int group (0.75)

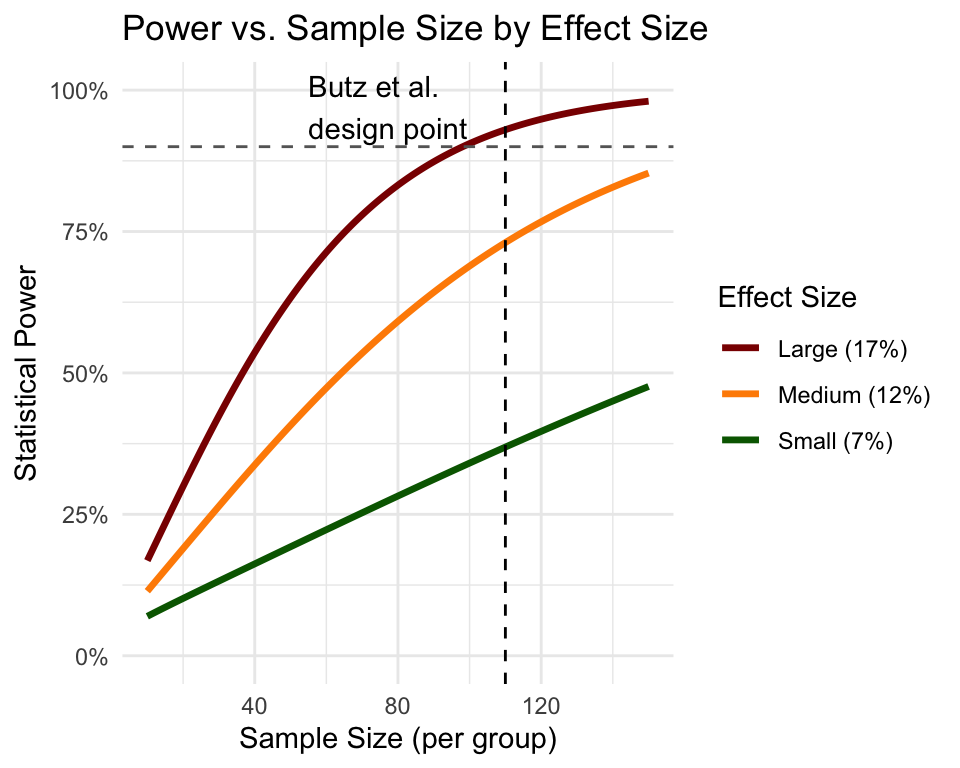

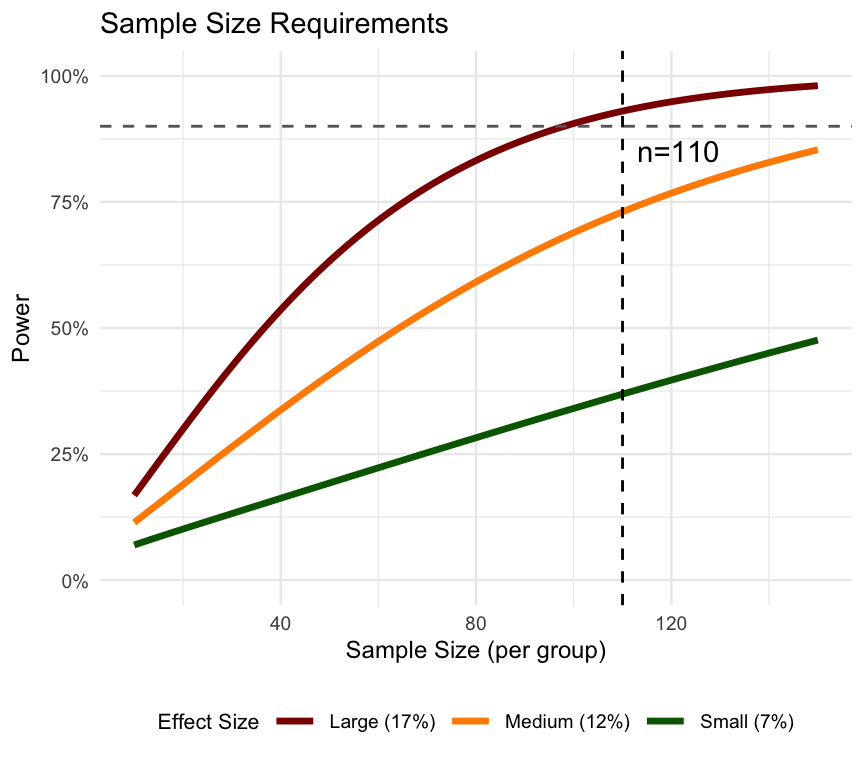

Effect Size Matters!

• Smaller effects require larger samples
• 17% reduction is clinically meaningful

Calculating Sample Size for the Study

Sample Size Formula for Two Proportions

\(n \text{ per group} = \frac{(Z_{\alpha/2} + Z_{\beta})^2 \times [p_1(1-p_1) + p_2(1-p_2)]}{(p_1 - p_2)^2}\)

Plugging in the Values

• \(Z_{\alpha/2}\) = 1.96 (α = 0.05)
• \(Z_{\beta}\) = 1.28 (Power = 90%)
• \(p_1\) = 0.92 (Control)
• \(p_2\) = 0.75 (Intervention)

\(n = \frac{(1.96 + 1.28)^2 \times [0.92(1-0.92) + 0.75(1-0.75)]}{(0.92 - 0.75)^2}\)

\(n = \frac{10.5 \times (0.0736 + 0.1875)}{0.0289} = 95\) patients per group

Adjustment for Attrition

• Added ~15% buffer for potential dropouts
• Final target: 110 per group

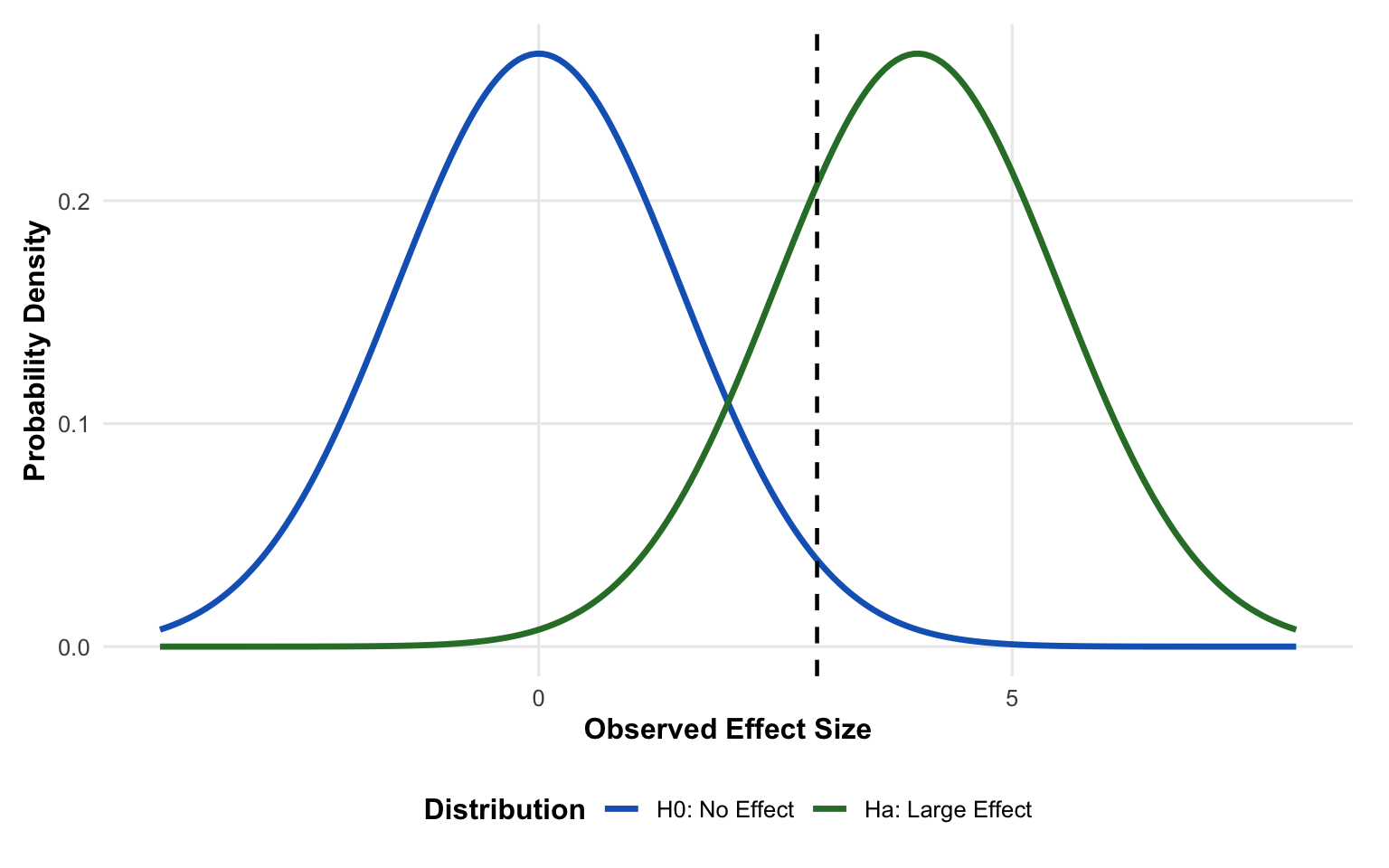

Short Detour: Understanding Hypothesis Testing

• Type I Error (α): Probability of falsely rejecting a true null hypothesis
• Type II Error (β): Probability of failing to reject a false null hypothesis
• Statistical Power (1-β): Probability of correctly rejecting a false null hypothesis

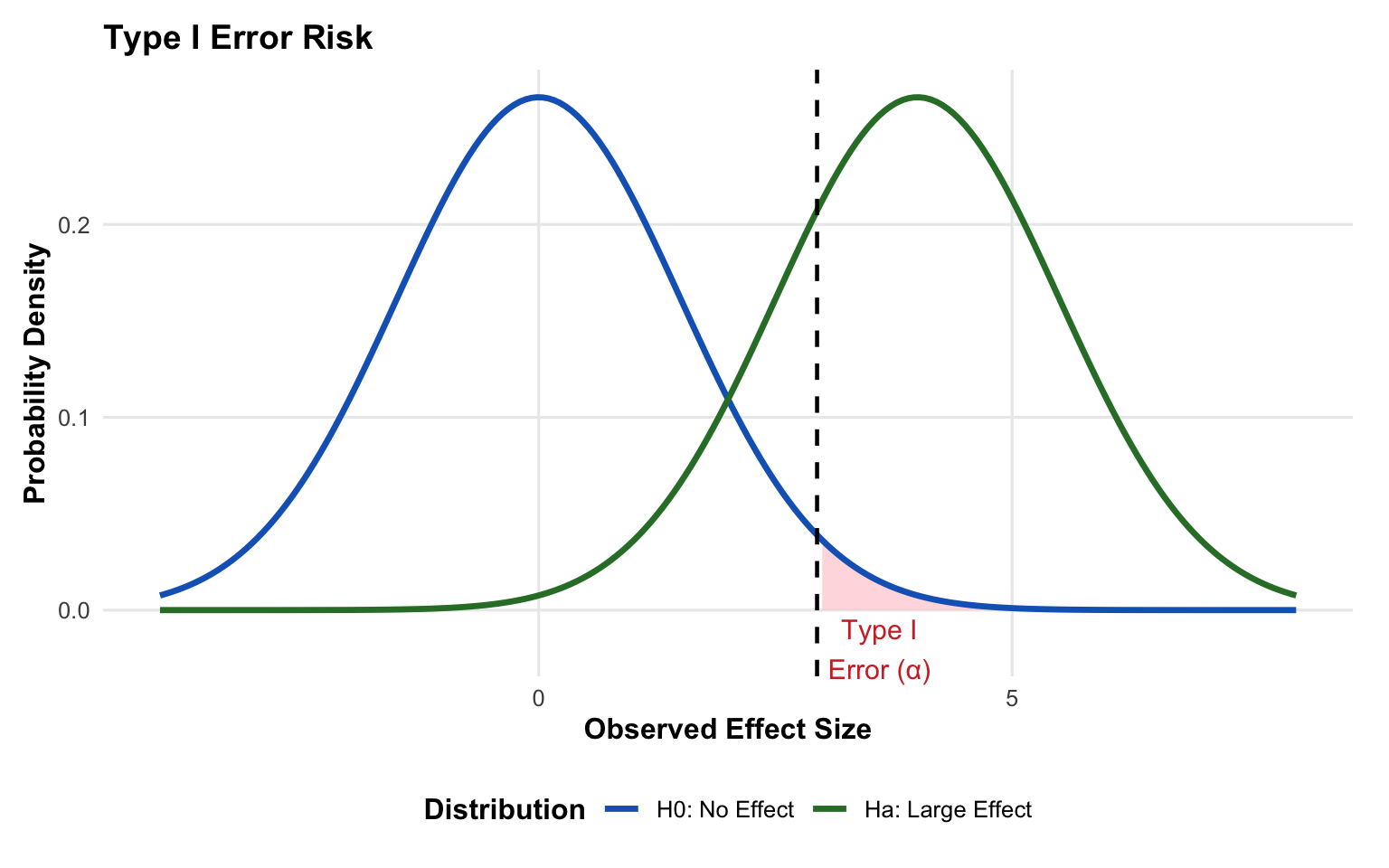

Type I Error (α)

• The area where we reject H0 when it is actually true
• This is our false positive risk
• In scientific research, we typically control this at 5% (α = 0.05)
• For a negative study result, this is not our primary concern

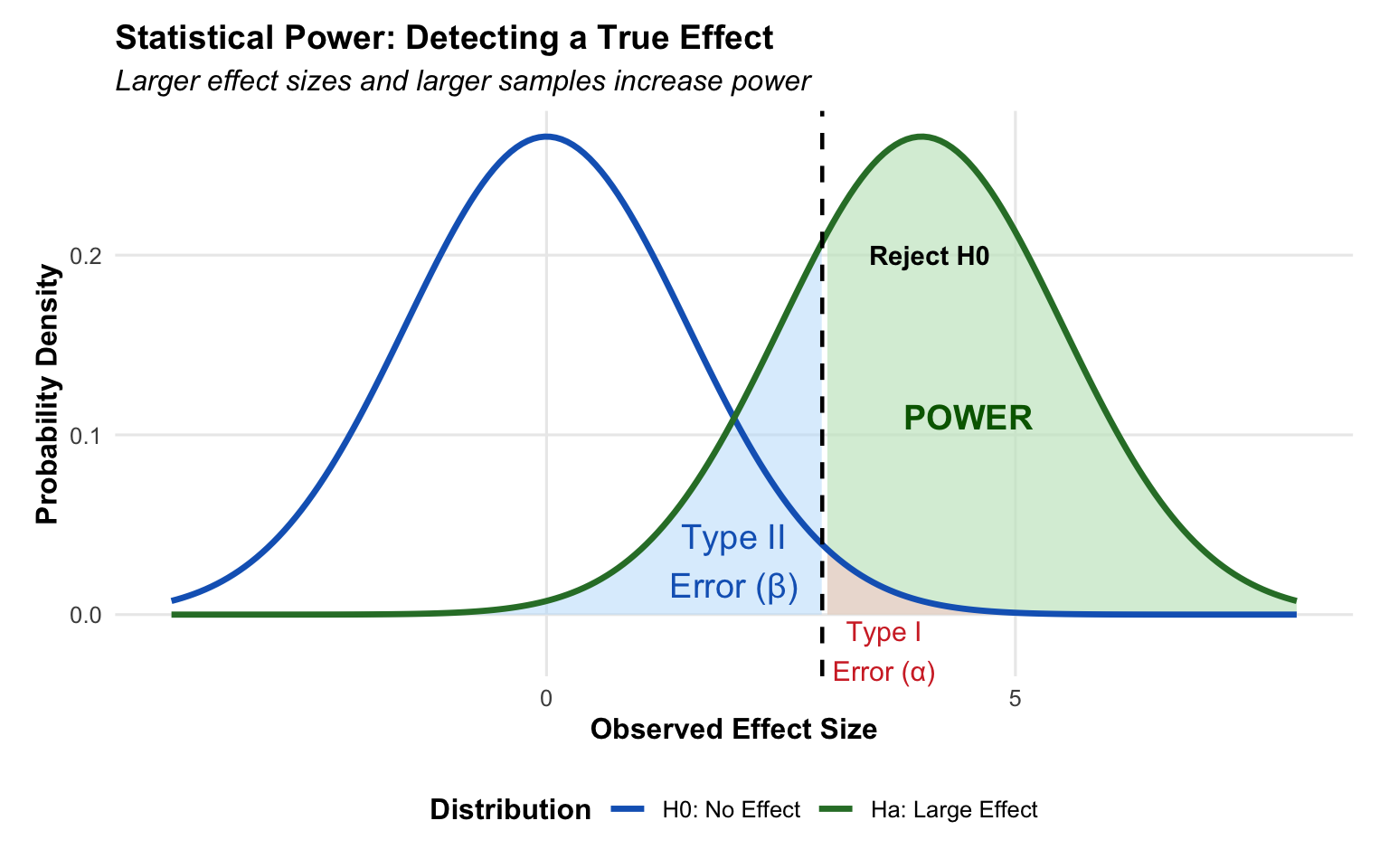

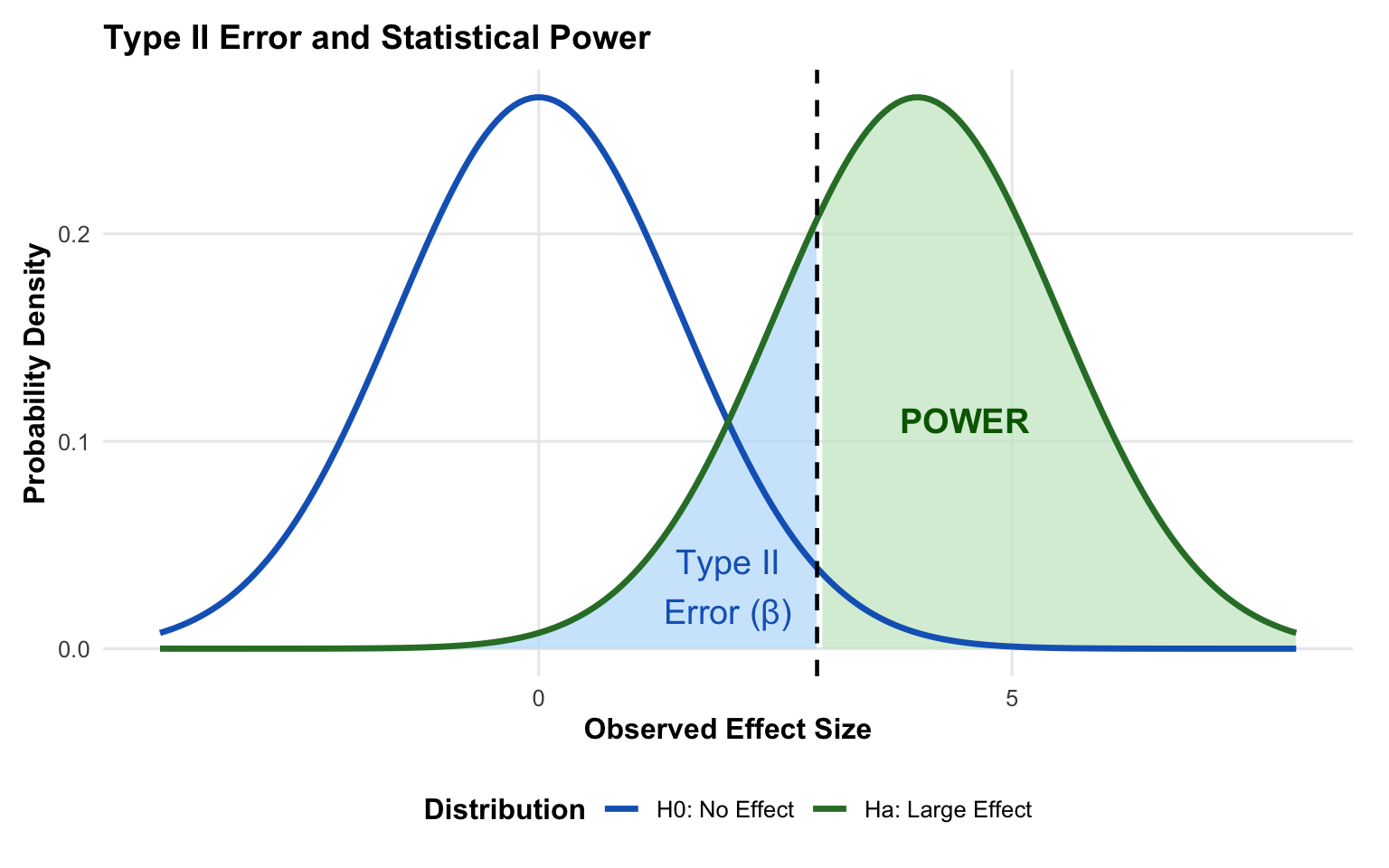

Type II Error (β) and Statistical Power

• Type II Error (β): Probability of failing to reject H0 when Ha is true
• Statistical Power (1-β): Probability of correctly rejecting false H0
• Underpowered studies risk missing true effects
• Affected by: sample size, effect size, variability, and significance level

Power Revisited

• Power: Probability of correctly rejecting false \(H_0\) (1 - β)
• Underpowered “negative” study can be uninformative
• A priori power calculation is good scientific practice
• Post-hoc power calculations generally unhelpful; focus on CI instead

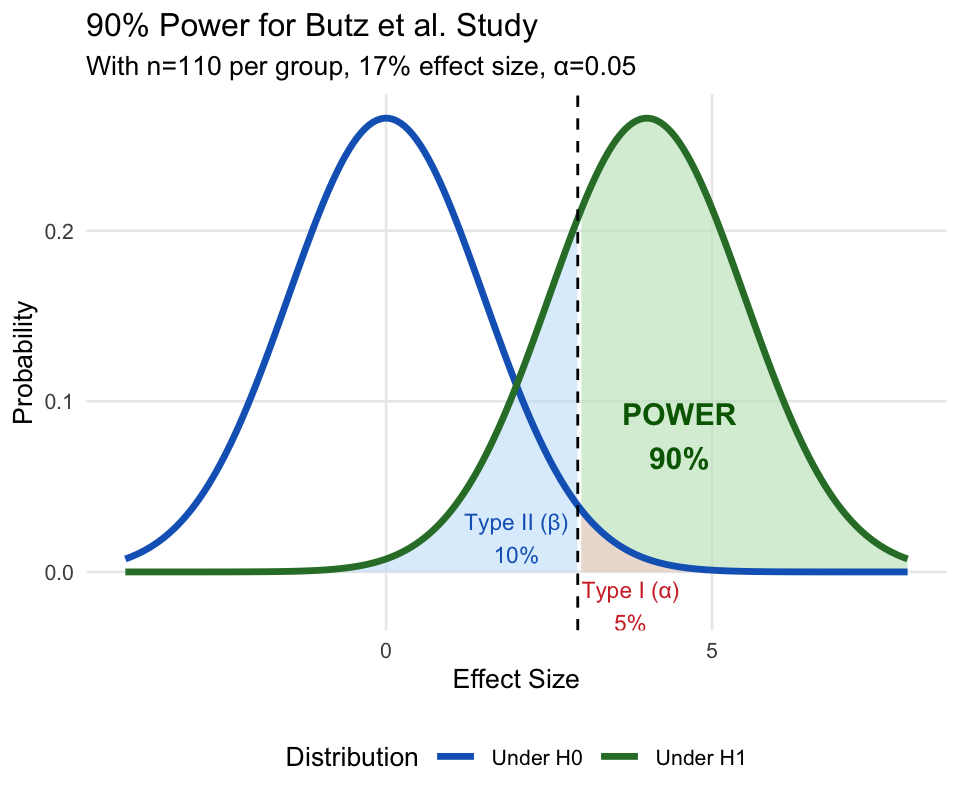

Understanding 90% Power for the Study

What 90% Power Means

• If the intervention truly reduces ED visits from 92% to 75%, we have a 90% chance of detecting this effect

Error Risks with n=110 per group

• Type I error (α=0.05): 5% chance of falsely claiming the intervention works when it doesn’t
• Type II error (β=0.10): 10% chance of missing a true effect when it exists

Actual Study Groups (Butz et al., 2019)

Intervention Group (n=107)

• ED Follow-up Visit within 7 days:
  • Asthma symptom evaluation
  • Medication review & inhaler technique
  • Review allergen & cotinine results with visual aids
• Two Home Nurse Visits:
  • Targeted EC education based on allergen sensitization
  • Active remediation (traps, baits, trash cans)
  • Motivational interviewing for smoking cessation
• PCP follow-up scheduled within 4 weeks

Control Group (n=115)

• No ED Follow-up

• Three Home Nurse Visits over 3 months:

  • Standard asthma education
  • Medication use & inhaler technique evaluation
  • Basic EC education without remediation
  • Review of mailed allergen & cotinine results

• Passive interventions:

  • Referrals to smoking cessation programs
  • Lab results mailed to caregivers/PCPs

• PCP follow-up scheduled

Results: Primary Outcome (Butz et al., 2019)

“There was no difference in increased risk of >1 ED visit at 12 months between INT and CON groups.”

Cox Proportional Hazards for INT vs CON:

• HR 1.10 (95% CI, 0.76–1.69)
• P = 0.61

“No Significant Difference”: What Does It Mean?

• Not necessarily “NO effect”

• Means study failed to reject \(H_0\)

• Possible Reasons:

  • True lack of effect (or tiny effect)
  • Type II Error (β): Intervention works, but study missed it
    • Powered at 90% for 17% reduction (10% Type II error risk)
    • If true effect smaller, study likely underpowered

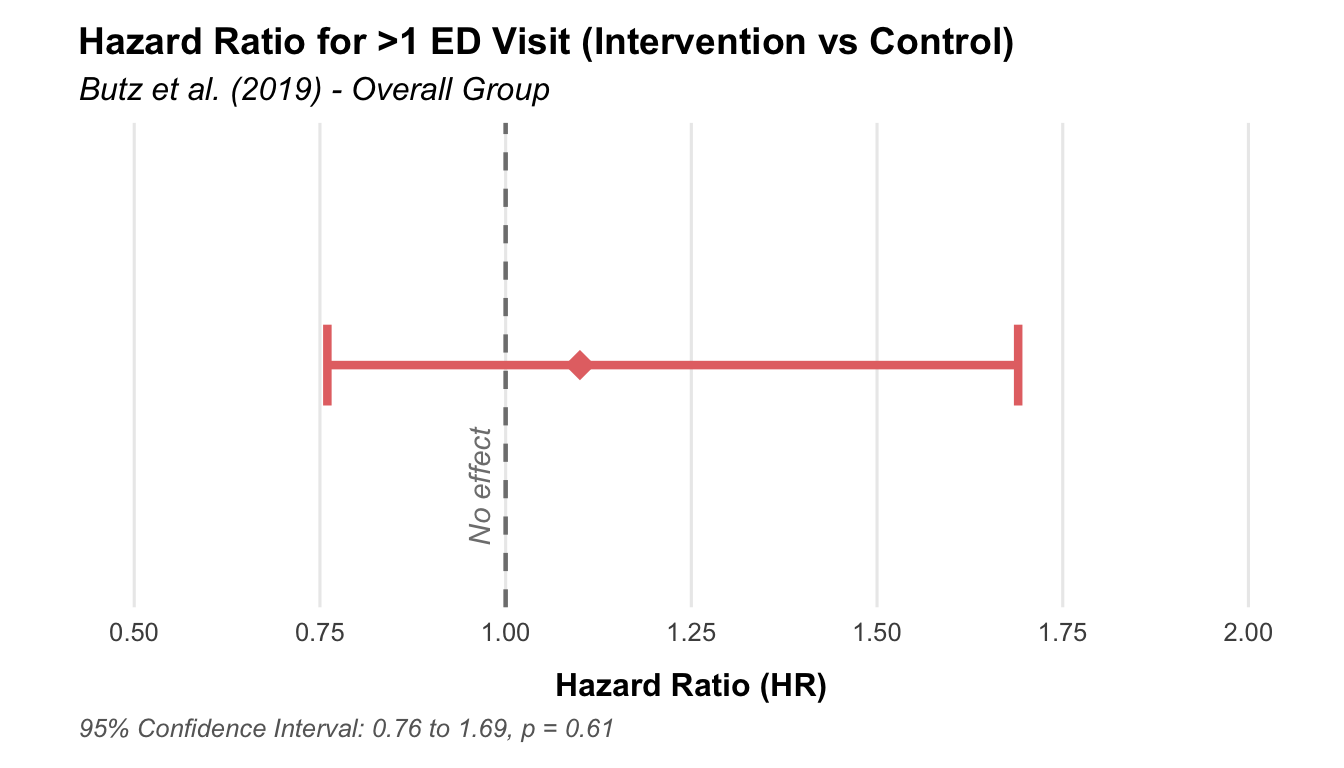

Butz et al. Confidence Interval

• HR 1.10 (95% CI, 0.76 to 1.69)

  • CI includes 1.0 (no difference in hazard)

• True effect could range from:

  • 24% reduction in hazard for INT (HR 0.76)
  • 69% increase in hazard for INT (HR 1.69)

• Wide CI indicates substantial imprecision

• CI helps determine if clinically meaningful effect is ruled out

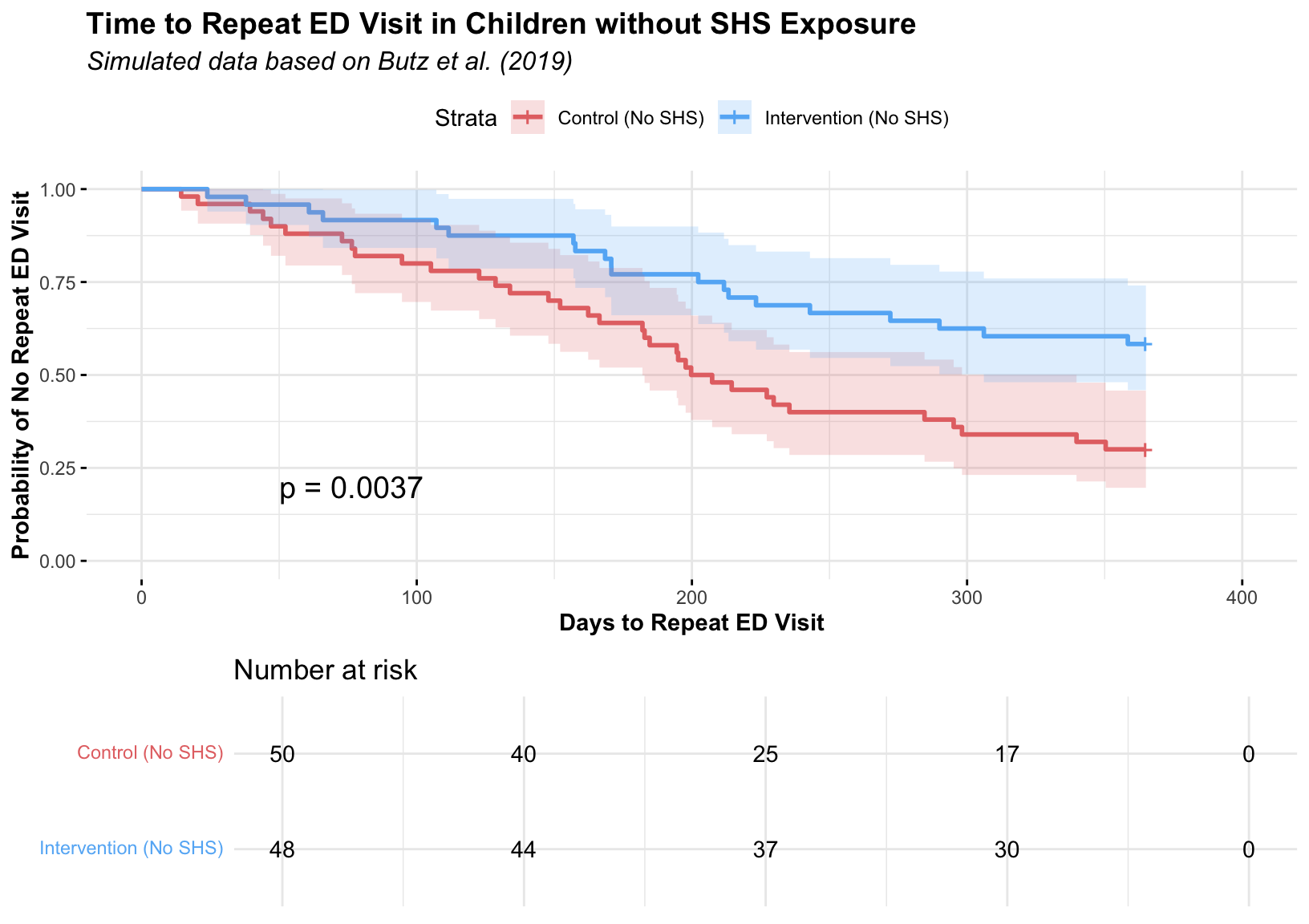

Subgroup Finding (Butz et al., 2019)

• For children without secondhand smoke exposure, median time to first recurrent ED visit differed significantly:
  • CON: 195 days
  • INT: >365 days (adjusted analysis)

• Caution with Subgroup Analyses:
  • May not be pre-specified
  • Multiple comparisons increase Type I error risk
  • Consider as hypothesis-generating rather than definitive

Teaching Points: Butz et al. Asthma Study

• RCTs provide strong evidence for testing interventions
• A Priori Power Analysis is essential for study planning
• Interpreting “Negative” Results:
  • “Failed to reject \(H_0\),” not “proved \(H_0\) true”
  • Consider Type II error possibility
  • Examine CI: Does it exclude clinically important effects?
  • P-values aren’t everything; CIs provide more information
  • Subgroup analyses should be interpreted cautiously

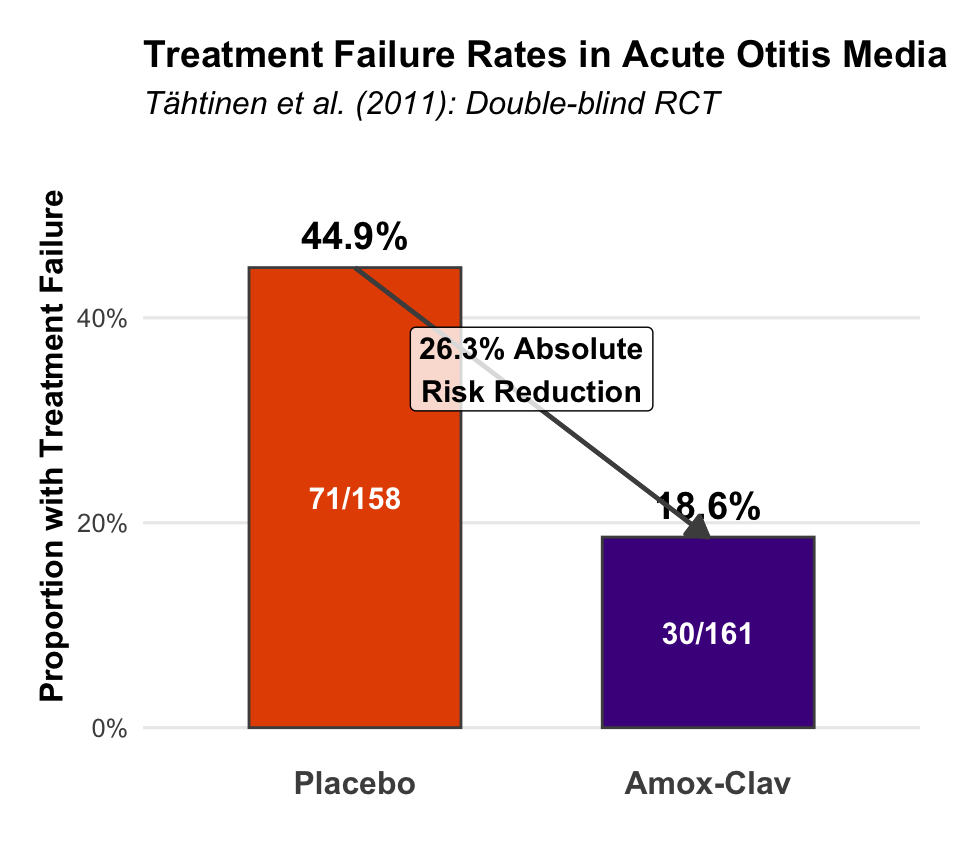

Case Study 3: Positive Trial - Treating AOM

Question: Antibiotics for Acute Otitis Media (AOM) in Young Kids?

• AOM is common, antibiotic use widespread but controversial
• Study: Tähtinen PA, et al. (2011). A placebo-controlled trial of antimicrobial treatment for acute otitis media. N Engl J Med, 364(2), 116-26.

Study Design: Another RCT

• Population: Children 6-35 months with AOM by strict diagnostic criteria
• Intervention: Amoxicillin-clavulanate (n=161)
• Control: Placebo (n=158)
• Primary Outcome: Treatment failure by day 8 (composite endpoint)
• Design Strengths: Randomized, Double-Blind, Placebo-Controlled

Results: Clear Difference

• Treatment Failure Rate by Day 8:
  • Amoxicillin-clavulanate: 18.6% (30/161)
• Placebo: 44.9% (71/158)
• P-value < 0.001
• Key Statistics:
  • Absolute Risk Reduction: ??
  • Number Needed to Treat: ??

Calculating Absolute Risk Reduction (ARR)

Step 1: Gather Raw Data

• Placebo group:

  • 71 failures out of 158 patients

• Failure rate = 71 ÷ 158 = 0.449 (44.9%)

• Amoxicillin-clavulanate group:

  • 30 failures out of 161 patients

• Failure rate = 30 ÷ 161 = 0.186 (18.6%)

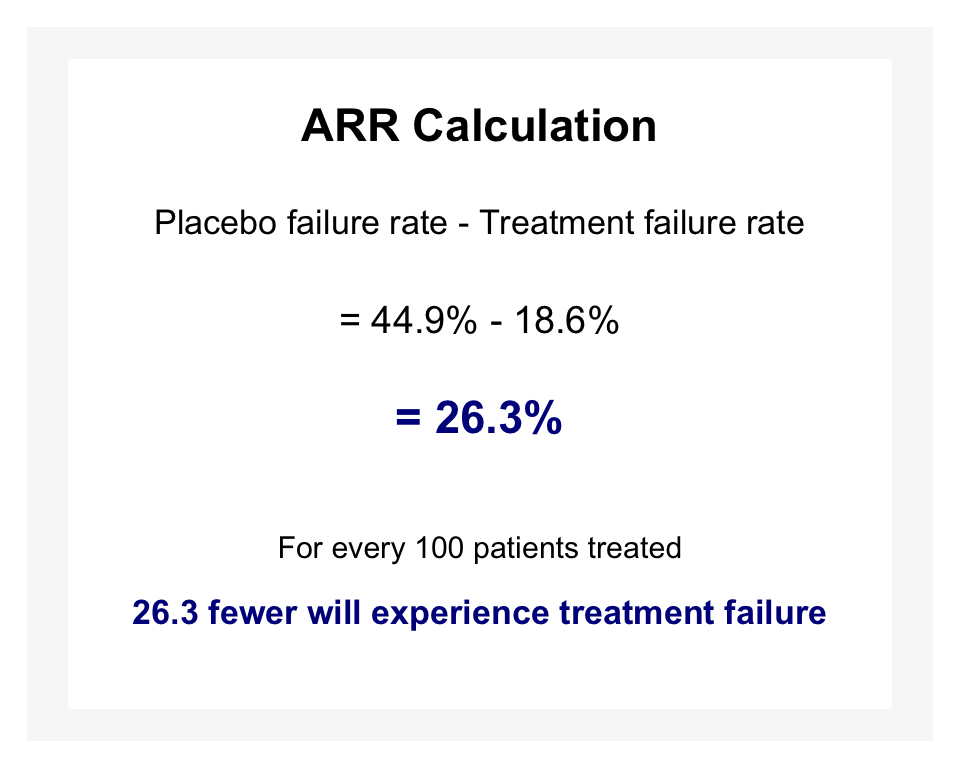

Step 2: Calculate ARR

• ARR = Risk₁ - Risk₂
• ARR = 0.449 - 0.186 = 0.263 (26.3%)

Absolute Risk Reduction to Number Needed to Treat

Step 3: Calculate NNT

• NNT = 1 ÷ ARR
• NNT = 1 ÷ 0.263 = 3.8 ≈ 4

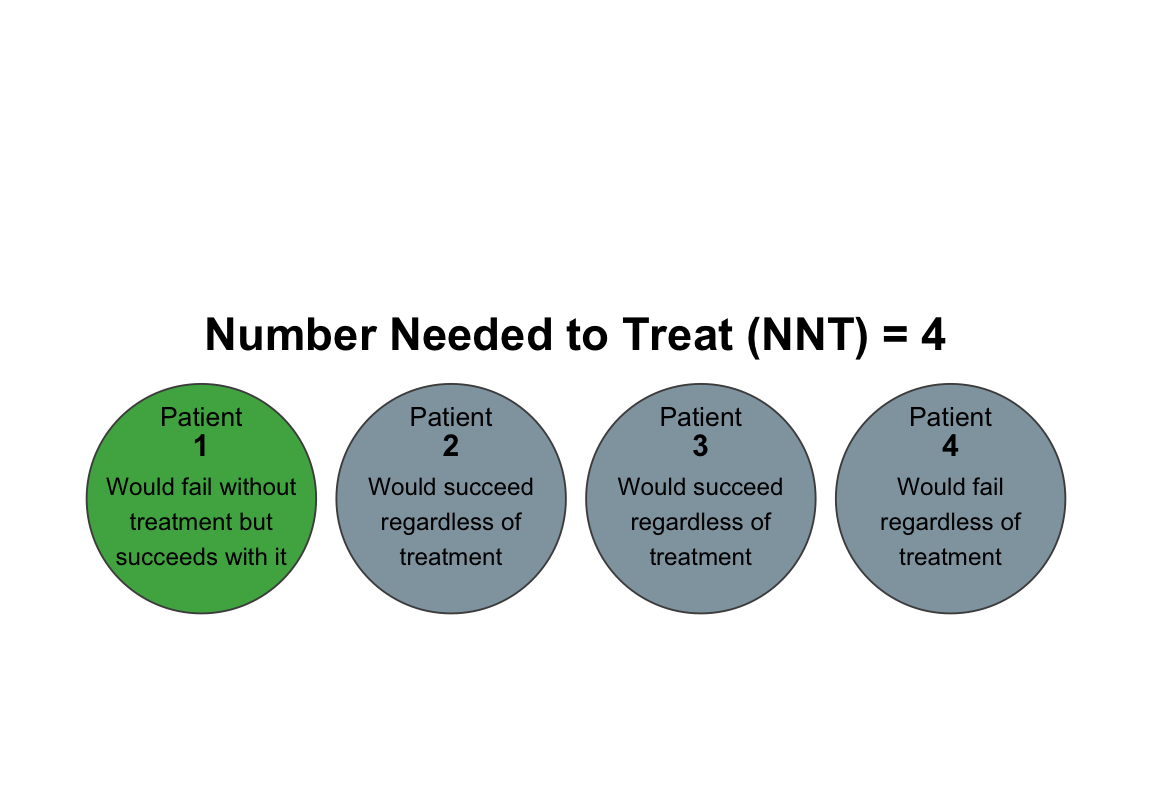

Clinical Interpretation

• NNT = 4 means:
  • You need to treat 4 children with antibiotics to prevent 1 case of treatment failure
• The other 3 children either:
  • Would recover without antibiotics
• Would still fail despite antibiotics

Clinical Significance of NNT = 4

Interpreting NNT = 4 in AOM

Context:

• Widely considered an excellent NNT
• For comparison:
  • NNT for antibiotics in adult sinusitis: ~15
  • NNT for statins preventing heart attack: ~60
  • NNT for aspirin preventing stroke: ~100

Benefits:

• Reduced symptom duration
• Decreased risk of mastoiditis and other complications
• Improved quality of life for child and family

Balancing Benefits and Harms

Costs:

• Antibiotic resistance concerns
• Side effects (diarrhea: NNH ≈ 7)
• Financial cost of treatment
• Medicalization of common condition

Clinical Application:

• Consider NNT alongside:
  • Symptom severity
• Age (higher benefit in younger children)
• Bilateral vs unilateral disease
• Presence of fever or severe pain

Teaching Points: Tähtinen et al. AOM Study

• Strong study design minimizes bias
• Clear, clinically relevant primary outcome
• Statistically significant result
• Clinical meaningfulness assessment:
  • NNT quantifies intervention benefit
  • Must weigh against harms (side effects, cost, resistance)
  • Statistical significance ≠ automatic clinical action
    • Why?

Synthesis & Key Takeaways

Pulling It All Together

• Diagnostic Models (Mawji et al.):
  • Logistic regression effectively combines factors to estimate outcome probability
  • Transparency (equation) & performance metrics (AUC, sens, spec) are essential
• “Negative” Trials (Butz et al., Teunissen et al.):
  • “No significant difference” ≠ “No effect”
  • Evaluate study power & CI width; was clinically important benefit ruled out?
• “Positive” Trials (Tähtinen et al.):
  • Statistical significance is necessary but insufficient
  • Effect size (ARR, NNT) & CIs show magnitude/precision
  • Clinical significance requires weighing benefits vs. harms, costs, patient values

Final Thoughts for Clinical Practice

• Be a critical consumer: Understand study design & limitations
• Look beyond p-values: Consider effect sizes, CIs, clinical relevance
• Integrate evidence with patient context and preferences
• EBM is a continuous learning process

Questions?
